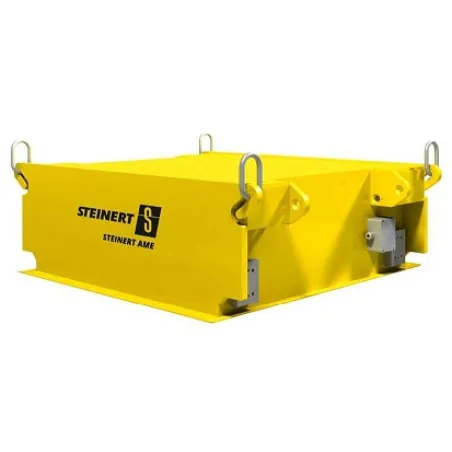

Electromagnetic STEINERT AME manual overhead suspension magnets convince by their strong magnetic fields with deep penetration, which collect ferrous parts efficiently even from great layer thicknesses. As opposed to the STEINERT UME overhead suspension magnets, these manual overhead suspension magnets are not self-cleaning as there is no circulating belt present. This necessitates a removal cycle during which the magnetic separator has to be briefly swung away from the separation area. All of the attracted ferrous parts fall onto a separate discharge point once the electromagnet is switched off. The magnet can then be placed back in its starting position and can be switched on again – the sorting cycle will begin again. This form of extracting magnetic separator is mainly used in the separation of isolated tramp iron or impurities, because manual overhead suspension magnets are generally suitable for low iron volumes.
Special features of the STEINERT AME: Our models exhibit a comparatively low power-to-weight ratio due to the special ANOFOL® coils made of anodised aluminium strip. ANOFOL® coils are not sensitive to temperature and fill virtually the entire magnetic separator volume thanks to their rectangular, compact design. A maximum amount of heat is transferred to the outer wall, making a dry design without an oil fill possible. Manual overhead suspension magnets of this kind do not require active air cooling. Round coils in contrast have the disadvantage of only partially filling the magnetic separator housing and they therefore have a shorter and narrower field, thus requiring more cooling.
You have the option as necessary of operating our electric manual overhead suspension magnets with suitable metal detectors, so that the magnets are only switched on when required and the power is further increased using excessive excitation. STEINERT AME units are available in working widths from 75 cm to 180 cm.
